Basic Info.

Model NO.

QDP4100 Air Jet Loom

Computerized

Precision

High Precision

Certification

CE, ISO9001: 2000, CQC

Warranty

1year

Customized

Condition

New

After-sales Service

Yes

Feeler

Photoelectric, Optical

Creel Stand

Floor Mounted, Horizontal Stand

Speed

600-1400rpm

Weft Density

5-60thread/M

Power

2.2-4.5kw

Beam Flange Diameter

800mm 1000mm

Transport Package

Waterproof, Plastic Protection Package

Specification

1700mm-3600mm

Trademark

DAPENG

Origin

China

HS Code

8446304000

Production Capacity

12000sets/Year

Packaging & Delivery

Package Size

310.00cm * 150.00cm * 125.00cm

Package Gross Weight

1500.000kg

Product Description

Dapeng High Speed Textile Weaving Machine Air Jet Loom From Qingdao China

Model NO.	QDP4100 air jet loom	Condition	New
After-sales Service	Spare Parts Supply and Technical Support	Shedding Type	Plain, Cam, Dobby
Reed Width	1700mm-3600mm	Bearing	NACHI,NSK
Weft Insertion Rate	2280m/Min	Customized	Customized
Trademark	DAPENG	Origin	China
HS Code	8446304000	Production Capacity	12000Sets/year

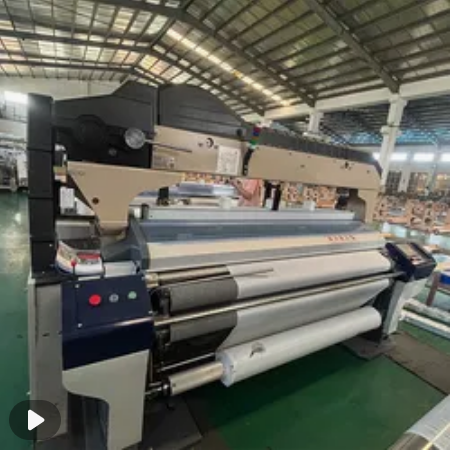

QDP4100 Air Jet Loom

Feature
short stroke weft beating, adapting to high speed weaving while reducing reed damage to the fabric;
shorten the length of the fabric from the weaving mouth to the cloth of the rollers for picking up the pricked skin to reduce rebound, which is conducive to improving the stability of the weaving mouth;
one-piece wall panels, with longitudinal bracing stops on the frame to improve the frame's stability;
eccentric rocking shaft structure to reduce the vibration of the weft beating;
1-4-color crank openings or cranks with
Stabilized rear beam lift structure for negative warp loosening; Stabilized weaving with higher density is possible by shortening the warp path of the cloth before weaving.
From fine to coarse yarns, from narrow to wide fabrics, and even fabrics with unbalanced organization, the weaving products are expected to correspond to a wider range of weaving products. By shortening the nozzle spacing, the difference between the weft draw-in states of the first and second nozzles is small, and uniform weft draw-in can be achieved even at high loom speeds.

Reed Space	1700mm-3600mm	Customized	Customized
Weft Insertion Rate	2280m/Min	Speed	600rpm-1400rpm
The Number of Heald Frame	2, 4, 6, 8 Pieces, Cam Shedding 10 Pieces Utmost	Weft Density	5-60 Thread/M
Beating up Method	Four-Linkage Beating up Shaft	Power	2.2kw-4.5kw
Feeler	Photoelectric, Optical	The Effective Width	0-500mm(Standard) 0-700mm(Optional)
Creel Stand	Floor Mounted, Horizontal Stand.	Drive	Push Button Switches for Start, Stop
Suction	Mechanical, Electronic	Temple	Top Mounted
Let off	electronic let off	Weft selection	Two color, four color, six color and continuous expansion function
beating up	"U" shaped beating up shaft	take up	electronic take up
Yard end treatment	Discarded take-up 2pcs drum-type	Selvage	Planetary gear type Selvage device
lubrication	Main transmission part oil bath type, manual centralized oil supply	Weft cutting	Mechanical weft cutting device
Weaving range	spun:Ne100~Ne2.5	automation	inverter to adjust speed.

Water jet loom is an efficient weaving equipment, mainly evaluated in the textile industry, with a wide range of application fields and specific scope of application. The following are the application directions of water jet looms:
Textile industry: Produces various fabrics, such as cotton fabrics, silk fabrics, linen fabrics, etc. It is suitable for the production of key filament chemical fiber fabrics with smooth surface. It is favored for its fast weaving speed and high unit output.
Garment Industry: Used to make shirts, trousers, trousers and other clothing products.
Home industry: Used to make bedding, curtains and other household items.
